Animation Mode in Cloner

[MaverickMongoose]

Thanks for that, that method works well, but if I make the effect happen from the center instead (attached cv4_2026_drs_25_mgta_11 v2.c4d), it doesnt work properly any more - the speed is all messed up.

Also I tried making the fields scale of your first file linear, but they still seem to move at different speeds (cv4_2026_drs_25_mgta_11 v2.c4d)

I've been struggling with this one all week, I watched all those Cineversity videos you suggested and tried a new setup (test 1 and 2 attached) but sometimes it works and sometimes it doesnt

Test 1 - the animation alone works great, but when i put it into a cloner it freaks out - seems to be something to do with the delay
Test 2 - is an almost identical setup, but works well, however if I replace the objects with the ones I want to use for production, it freaks out again like Test 1.

I really dont get it.

Seems like it would be such a simple thing to do in C4D with Mograph - It used to be easy to do this kind of thing with just falloff before fields were introduced.

Any ideas? I'm about ready to give up on it.

Files: https://we.tl/t-DykuPMNtDQ

Thanks again

[Dr. Sassi]

Hi MaverickMongoose,

Thanks for the two files.

I rendered a preview, and it appears differently (in terms of timing) from my editor view.

You certainly have different hardware, so I assume your results might differ from what I see.

The timeline being set to All Frames means it provides the next Frame when the one in work is finished. Hence, the preview render as timing control can't be ignored. (Not using all frames will not build up the effects needed here, so the setting is OK, but the amount of data turns off the real-time, at least here.)

Check the Main Menu> Windows> Object Profiler. Run the Scene.
I can see that the Cloner alone takes times of 500+ ms, and if other processes in the background (not Cinmea 4D) kick in, I saw even higher values.
https://help.maxon.net/c4d/2026/en-us/Default.htm#html/Object_Profiler.html

If you have 24 fps, then it easily exceeds the one second that would allow for real-time playback. When the numbers are produced Per Frame, then it is 24 times that duration. Yes, that might not be real-time anymore.

Is this answering your questions?

All the best

[MaverickMongoose]

Sorry about that, here's a video showing what I mean https://we.tl/t-tNtohUs64h. See how the baked animation is fine, but when I put it into a cloner and try to offset it with fields it just goes crazy, I just dont understand why as I follwed the cineversity tute to achieve the effect. All I want to do is offset that baked animation so it plays via a field

[Dr. Sassi]

Hi MaverickMongoose,

You baked a single animation, then MoGraph has to take the information and generate for each frame all the new data while checking which frame of the data needs to be applied, i.e., that each clone state needs to show.

As I asked: Please render a preview. Will that "staccato" effect show in the preview render? If yes, then it is a case for the Tech-Support, if not, (and I have sadly to guess here) you tested your hardware, and it might not be able to comply with your request.

I have no option to test or evaluate hardware, nor combinations of it, the Tech Support is much better equiped for that.

All the best

[MaverickMongoose]

Sorry yeah it renders exactly the same with the glitching, my computer is pretty powerful so I cant imagine it could be that. I guess in that case it must be a bug, I thought it might just be something about the behaviour of the fields I dont understand.

When I try Maxon Support they always send me back to the Cineversity forum instead, I'll give it a try though. Thanks for looking into it for me!

[Dr. Sassi]

Hi MaverickMongoose,

You have not shared how the file from above performed.
CV4_2026_drs_25_MGta_11.c4d

For "test_0001.c4d"
I miss the results from the Object Profiler or if that is not an option to answer, please try: Shift+C--> Calculate FPS -> Animation Test.
Let me know what FPS it shows. Here is my results with 361 clones:
Frames: 81|Total time: 24.700|FPS: 3.28 (I tested a few times, that was the best)

Or check with Tech Support:
https://www.maxon.net/en/support-center

Have a great start to your week

[MaverickMongoose]

No worries, I did the test but I dont understand why that matters. On every frame mode in the timeline it should force it to perform the calculations shouldnt i? so if I do a mograph Cache it should work, but it still glitches. Are you saying it works fine for you and that it must just be my computer? I never would have thought it could be a hardware issue

cv4_2026_drs_25_mgta_11:

Frames: 301
Total time: 0.950
FPS: 316.91

Test001:

Frames: 81
Total time: 2.189
FPS: 37.00

[Dr. Sassi]

Hi MaverickMongoose,

These are quite impressive values. Thank you. This indicates easily that we can exclude Hardware on your side. This is good news.

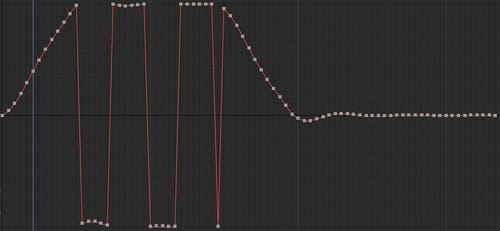

I have to ask, since I'm not clear if this is intentional or perhaps the reason for the problem. I took the F-Curve so far as a given. But perhaps here is the problem. Here is a screen shot of your animation.

Are these 360º jumps intentionally, or just a Quaternion vs Euler problem
https://help.maxon.net/c4d/2026/en-us/Default.htm#html/OCYLINDER-ID_BASEOBJECT_GROUP1.html#ID_BASEOBJECT_QUATERNION_ROTATION_INTERPOLATION

Cheers

[MaverickMongoose]

Yes you're right! Moving those broken keys seems to fix the problem. The bake must have messed up the keyframes - I just used a track modifier for the bounce originaly. Weird that it looks fine without the cloner.

you've done it again, thanks for that! Now I can finish this one off, cheers!

[Dr. Sassi]

Thanks for the feedback, MaverickMongoose.

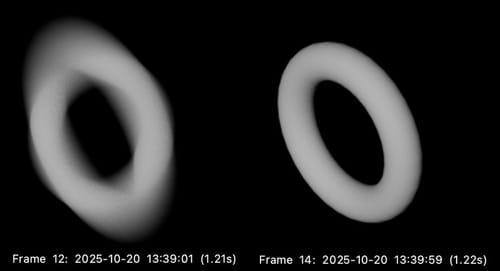

Yes it might look that way, but take that animation without the Cloner, switch on Motion Blur, and compare the results of frame 12 and 14. Use the Redshift Render, not the IPR.

My best wishes for your project
