Shader effector and real world size

Question & Answers
2
6
166
Loading More Posts
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • AlexC
    AlexC last edited by 23 days ago

    Hello
    I'm working on a project where I'm using a cloner grid with a 3d model of an object that is at the real world size .
    I'm using the Shader effector to only make the clones visible where the image I am feeding the shader effector is black.

    What I'm trying to figure out is that I would like to calculate the smallest amount of 3d objects I need to feed the cloner to make the image visible at different sizes.
    Right now my cloner grid is quite large, but in the real world it would need to be half the size.
    What is the best way to play around with this setup to retain the "readability" of the image but pushing it to the limit of what is possible to read in the real world.

    File is here : https://www.dropbox.com/scl/fo/dljhbz5i6yl8slvenvoif/AL5wRfmswnBQlNiVAN6vz8k?rlkey=j4zajo3stp80xy4j8z43cgyrq&dl=0

    Thank you!

    1 Reply Last reply Reply Quote
    • Dr. Sassi
      Dr. Sassi last edited by Dr. Sassi 22 days ago 23 days ago

      Hi AlexC,

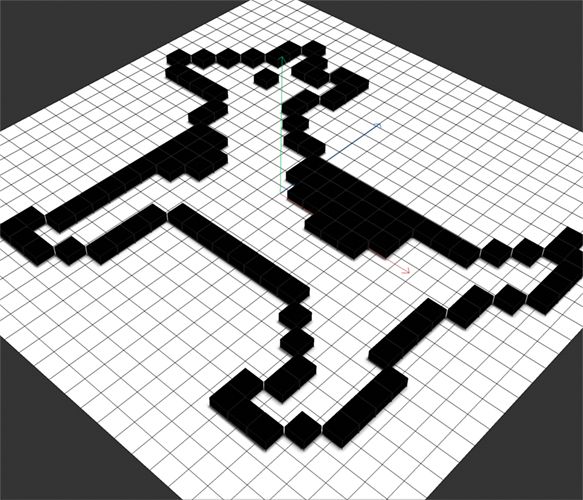

      The image shows a frame of a half "Square" while the image is in a 29x29 raster of full Squares.!
      🔒 Log in to view

      If the frame is never used, a Plane that uses a 29-segment (30 vertices in size, meaning 30x30) is working.
      I placed the clones on the vertices of the plane that also holds the image, to keep this in sync.
      The plane is 29 times larger than the square, based on the image.
      Example (place the file in the Dog folder, so the image connects)
      CV4_2025_drs_25_MGdg_01.c4d

      The real-world size is difficult to say; what is one square size. We could start with squares 0.5 mm x 0.5 mm and place them close to the eye; that would work. But on a billboard on a roof, a square might be more than 30cm - to a meter. Size is relative.
      What is not relative is to translate the image into squares. Since the frame is half, that is the only uncertainty for me here.

      If the frame needs to be perfect, with half-squares so they don't exceed the image space, then four times more (2x2=4) are needed, while half-size squares are required. If the frame stays clear, it is a quarter of them. Here I use the Polygon Center for the clones.
      Example (place the file in the Dog folder, so the image connects)
      CV4_2025_drs_25_MGdg_02.c4d

      Let me know if there is anything not clear
      My best wishes for your project

      Dr. Sassi Sassmannshausen Ph.D.
      Senior Trainer, Maxon Master Trainer, L&D - Strategist
      Cinema 4D mentor since 2004, Member of VES, DCS.

      1 Reply Last reply Reply Quote
      • AlexC
        AlexC last edited by 23 days ago

        Hey Sassi

        Thank you, yes it is a sort of half/quarter square because the real world object has those proportions, so I am "cheating" squares by using rectangular boxes. But thank you for this, it is giving me a new idea on how to execute this in real life!
        Is there a way that I can extract the number of cubes used to create the full outline of the dog? Maybe with Xpresso?

        Thank you!

        1 Reply Last reply Reply Quote
        • Dr. Sassi
          Dr. Sassi last edited by Dr. Sassi 22 days ago 22 days ago

          Thanks for the reply, AlexC,

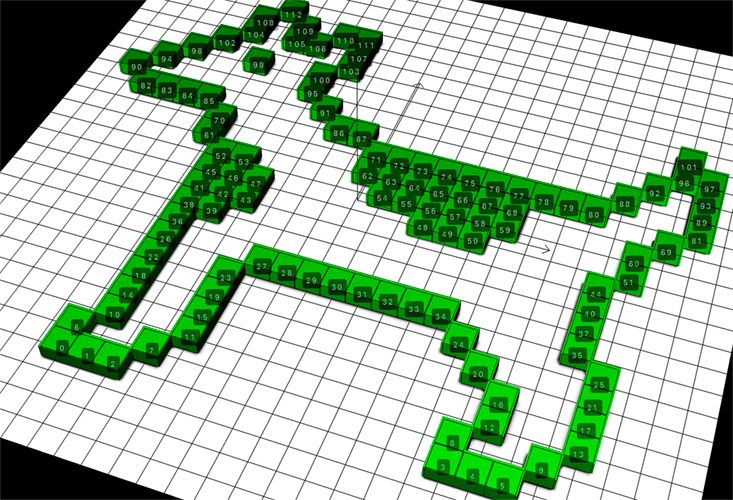

          Here is a setup with Clone Counts.

          When some clones are just scaled to -1, they are as before "there", hence the count would be wrong.

          I had to add some parts to make it work.
          I have marked all parts needed for the counting with a green Layer.
          (Place in the Dog folder>Tex)
          CV4_2025_drs_25_MGdg_11.c4d

          The Matrix Object serves here just as a counting part. Hence, it changes its name to the count. (Press the "a" key if a refresh is needed)
          The Clone index is just for demo purposes; they do not need to be active for anything.

          🔒 Log in to view

          Cheers

          All the best

          Dr. Sassi Sassmannshausen Ph.D.
          Senior Trainer, Maxon Master Trainer, L&D - Strategist
          Cinema 4D mentor since 2004, Member of VES, DCS.

          1 Reply Last reply Reply Quote
          • AlexC
            AlexC last edited by 22 days ago

            Amazing! Thank you Sassi!!

            1 Reply Last reply Reply Quote
            • Dr. Sassi
              Dr. Sassi last edited by 22 days ago

              You're very welcome, AlexC.

              My best wishes for your project!

              Dr. Sassi Sassmannshausen Ph.D.
              Senior Trainer, Maxon Master Trainer, L&D - Strategist
              Cinema 4D mentor since 2004, Member of VES, DCS.

              1 Reply Last reply Reply Quote
